The LT-932-OLED constant voltage 32-Channel DMX Decoder 3A per Channel is designed for professional Stage and theater use where multiple DMX outputs are required for RGB LED Strips. The LT-932-OLED has multiple connection interface that includes RJ45, 3-pin XLR, 5 pin XLR and terminal block connections for DMX in and out. The terminal block connection also serves as a DMX signal amplifier to ensure data transmission (Cat 5) over long distances. OLED screen with button control is used for setting the DMX address and other operations. Four power inputs for Class 2 type LED drivers.
LT-932-OLED DMX Decoder Features
| Converts standard DMX signals to PWM output for driving 12VDC or 24VDC LED lighting |
| 32 x 3A channel power rating supports large installations up LED Strips |
| Works with 12VDC and 24VDC LED lights |
| OLED screen with button control for easy access and setting the DMX address |
| Uses universal standard DMX512/1990 with 8bit (256 levels) and 16 bit (65536 levels) grey scale output per channel, 0-100% brightness and various changing effect |
| RDM remote management protocol for the parameters browsing & setting, DMX address setting, equipment recognition operations |

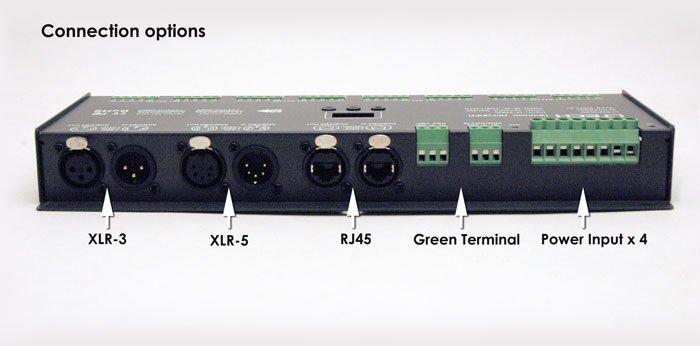

| RJ45, 3-pin XLR, 5-pin XLR and terminal block connections for DMX signal in and out |
| Controls single color, CCT, RGB and RGBW LED fixtures |
| Terminal block DMX output includes a DMX signal amplifier |
| Rugged metal chassis with two sets of terminal screws for low voltage input power (capable of accepting 12 gauge wire) |
Use only with LED World’s Regulated Class 2 power supplies. Do not use with magnetic dimmable power supply.
Important note: The maximum length of RGB/W LED Flex Strip attached to DMX Decoder should not exceed 20 linear feet (due to voltage drop resulting in color loss).
Product Description
The LT-932-OLED constant voltage 32-Channel DMX Decoder 3A per Channel is designed for professional Stage and theater use where multiple DMX outputs are required for RGB LED Strips. The LT-932-OLED has multiple connection interface that includes RJ45, 3-pin XLR, 5 pin XLR and terminal block connections for DMX in and out. The terminal block connection also serves as a DMX signal amplifier to ensure data transmission (Cat 5) over long distances. OLED screen with button control is used for setting the DMX address and other operations. Four power inputs for Class 2 type LED drivers.
LT-932-OLED DMX Decoder Features
| Converts standard DMX signals to PWM output for driving 12VDC or 24VDC LED lighting |
| 32 x 3A channel power rating supports large installations up LED Strips |
| Works with 12VDC and 24VDC LED lights |
| OLED screen with button control for easy access and setting the DMX address |
| Uses universal standard DMX512/1990 with 8bit (256 levels) and 16 bit (65536 levels) grey scale output per channel, 0-100% brightness and various changing effect |
| RDM remote management protocol for the parameters browsing & setting, DMX address setting, equipment recognition operations |
| RJ45, 3-pin XLR, 5-pin XLR and terminal block connections for DMX signal in and out |
| Controls single color, CCT, RGB and RGBW LED fixtures |
| Terminal block DMX output includes a DMX signal amplifier |
| Rugged metal chassis with two sets of terminal screws for low voltage input power (capable of accepting 12 gauge wire) |
Use only with LED World’s Regulated Class 2 power supplies. Do not use with magnetic dimmable power supply.
Important note: The maximum length of RGB/W LED Flex Strip attached to DMX Decoder should not exceed 20 linear feet (due to voltage drop resulting in color loss).
Technical Specifications
| Input Signal | DMX512 / RDM |
| Input Voltage | DC12~DC24V (4 x Input) |
| Current load | 3A x 32CH Max 96A |
| Output Power | (0~36W~72W) x 32 Channel (Max. 2304W) |
| DMX512 Socket | XLR-3, XLR-5, RJ45, Green terminal |
| Control modes | Dimming / CCT / RGB / RGBW |
| Dimming Curve | 0.1~9.9 |
| Grey level | 8 bit (256 levels) / 16 bit (65536 levels) |
| Photoelectric Isolation | Yes |
| Working Temp | -30°C~55°C (-22°F~131°F) |
| Dimension | L 300mm x W 122mm x H 39mm (L 11.81″ x W 4.80″ x H 1.53″) |
12VDC Power Supplies
30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 LED Power Supply YHY-12005000
| Max Continuous Load | 60 W (48 W continuous) |
| Voltage | 12 VDC Output / 100~240 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor use) |
180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2
| Max Continuous Load | 180W (3 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2
| Max Continuous Load | 300W (5 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
24VDC Power Supplies
100W 24VDC Class 2 DMX LED Driver LW-24100-5C-ADJ
| Max Continuous Load | 100 W |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Rated Current | 4.16A |
| Power Supply Type | DMX512 Class 2 (Indoor/Outdoor use) |
30W 24VDC Class 2 Triac/0-10V Dimmable LED Driver MD-024-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 24VDC Class 2 Triac/0-10V Dimmable LED Driver MD-024-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
96W 24VDC Class 2 LED Power Supply with Plug
| Max Continuous Load | 96 W (77 W continuous) |
| Voltage | 24 VDC Output / 120 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor use) |
96W 24VDC Class 2 Triac/0-10V Dimmable LED Driver MD-024-096VTDHV2
| Max Continuous Load | 96 W |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Rated Current | 4A |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
192W 24VDC Class 2 Triac/0-10V Dimmable LED Driver MD-024-192VTD52JV2
| Max Continuous Load | 192W (2 Tap x 96W) |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Rated Current | 2 x 4A |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
288W 24VDC Class 2 Triac/0-10V Dimmable LED Driver MD-024-288VTD52JV2
| Max Continuous Load | 288W (3 Tap x 96W) |
| Voltage | 24 VDC Output / 100~277 VAC Input |
| Rated Current | 3 x 4A |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
Master Color Controllers
DMX Touch Panel RGB/RGBW LED Master Controller HUEDA LW-2814DMX
HUEDA™ multi-zone DMX Touch Panel Master Color controller features easy to touch and control colors, brightness and color changing speed effects.
DMX Color Master Controller HUEDA™ Hub H-2818WIN
The H-2818WIN HUEDA™ Hub (master) is a Wi-Fi/RF color controller that allows you to control color changing of RGB and RGBW LED Lighting through DMX standard or wireless HUEDA RF color receivers.
Product Accessories
Wireless DMX Receiver Pen
Wireless DMX 3-pin XLR Female connector- Receiver. LC-512x-F works with H-DMX2108A-5M-3 and receives signal from LC-512x-M.
Wireless DMX Transmitter Pen
Wireless DMX 3-pin XLR Male connector- Transceiver. LC-512x-M works with H-DMX2108A-5M-3 and transmits signal to LC-512x-F.
RGBW 2464 Wire – 16.4ft (5m) length
Low voltage 20 Gauge / Meter cord. Comes in 16.40 feet length. RGBW Power cord with pigtail wires on both ends
