Product Description
5CH DMX512 Decoder H-DMX2108A-5M-3 is a Low voltage DMX512 DMX Decoder/Zone Controller (12V ~ 24VDC, 8A per channel output) for use with RGB and RGBW LED low voltage lighting for camera flicker free lighting control with 8 or 16 bit decoder. Can be used in conjunction with a master DMX controller (such as a HUEDA™) to control; 1 run of low voltage RGB LED lighting (for each H-DMX2108A-5M-3). When used with other H-DMX2108A-5M-3 DMX decoders, multiple runs can be coordinated to work together in synchronization or be configured in separate zones.
Uses universal standard DMX512/1990. Flicker Free Video Recording. Ideal for TV, stage and theater use. PWM frequency can be adjusted to 30K. Multiple connections of DMX in/out ports: RJ45, XLR and screws terminals. Uses 5 channels with 8 bit (256 shades) and 16 bit shading (8 bit default). Indoor use only. Output PWM frequency adjustable from 500Hz ~ 9KHz. Output dimming curve gamma adjustable value from 0.1 ~ 9.9. For more operation and setup details please refer Product Specs and Instruction PDF.
Use only with LED World’s Regulated Class 2 power supplies.
Important note: The maximum length of RGBW LED Flex Strip attached to DMX Decoder should not exceed 20 linear feet (due to voltage drop resulting in color loss).
5CH DMX512 Decoder Features
| DMX 512 RDM decoder, RDM function can inter-communicate between DMX master and decoder. e.g. you can set DMX decoder’s address by DMX master console |
| Metal housing, digital display for address data, easily to set and show DMX address |

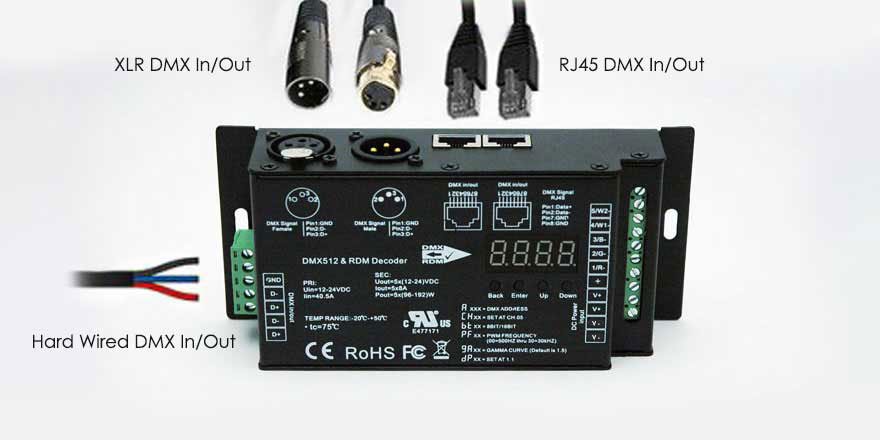

| Multiple DMX in/out ports: RJ45, XLR, normal screws |
| Total 5 PWM output channels, common anode. Adjustable DMX channel quantity from 1CH~5CH |
| Adjustable PWM output resolution ratio 8bit, 16bit |
| Adjustable output PWM frequency from 500Hz ~ 9KHz |
| Adjustable output dimming curve gamma value from 0.1 ~ 9.9 |
| Adjustable decoding mode |
