Product Description

2W Epistar SMD 3030 LED Sign Edge light modules is super bright LED module that beams an angle 45 x 10 degrees allowing to light a double-sided signs. LED Edge light Sign modules are sold in a string of 20 module per pack and allow easy edge lighting of a box or sign with the light emitting out on both sides. Its IP65 durable construction allow it to be used for indoor or outdoor use.

LED Sign Edge Modules sold in 20 pcs per pack

Applications

Ideal for outdoor or indoor lighted sign boxes
Edge Lighting for Signage

Features

Epistar 2W SMD 3030 LEDs, better heat dissipation and longer lifespan
20pcs max in a serial connection
Beaming angle is 45×10 degree that makes lighting farther
Injection material is UV resistance and fire retardant
Operating temperature: -20°C ~ +50°C
Water resistant IP65 case
cULus Regulated, RoHS component for sign industry

Technical Specifications

Volts12 VDC
Power2.1 Watts (each module)
Color Temperature6000~6200K
Beaming Angle45 x 10 degree
CRI≥80
Luminous Flux(lm)170~175lm

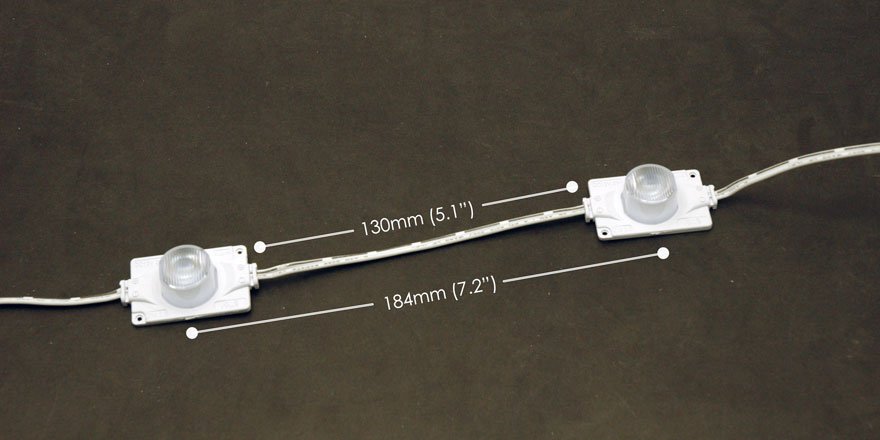

Dimension52L x 30W x 14.1Hmm (2L x 1.18W x 0.56H inches)
Total Length148″ (3.75m)
IP RatingIP65
Operating Temperature-20°C ~ +50°C (-68°F ~ +122°F)

LED Power Supplies

  • New

    50W 0-10V Dimmable Class 2 Driver CVD50L12DC

    Voltage12 VDC Output / 120~277 VAC Input
    Power Supply Type0-10V Dimmable Class 2
    IP RatingIP65 (Suitable for Indoor/Outdoor use)
    $72.00 Add to cart More Info

  • 24W 12VDC Class 2 LED Dimmable Driver MD-012-024VT

    12V MD-012-024VT Multi Dim LED Driver
    Max Continuous Load24 W
    Voltage12 VDC Output / 100~130 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor use)
    Multi-Dim series is compatible with Forward phase, Magnetic low voltage and Triac dimmers
    $45.00 Add to cart More Info

  • 45W 12VDC Class 2 LED Dimmable Driver MD45W12VA

    Max Continuous Load45 W
    Voltage12 VDC Output / 110~120 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor use)
    Compatible with Forward phase, Magnetic low voltage and Triac dimmers
    $77.75 Out of Stock More Info
  • New

    50W 12VDC Class 2 Driver CVN50L12DC

    Voltage12 VDC Output / 120~277 VAC Input
    Power Supply TypeRegulated Class 2
    IP RatingIP65 (Suitable for Indoor/Outdoor use)
    Warranty5 Years
    $69.00 Add to cart More Info

  • 60W 12VDC Class 2 LED Power Supply MTR72DAUL-1250B

    Max Continuous Load60 W (48 W continuous)
    Voltage12 VDC Output / 110~120 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor use)
    Comes with barrel type connector for easy plug in and connect
    $25.25 – $30.50 Out of Stock More Info

  • 60W 12VDC Class 2 LED Dimmable Driver MD-012-060VT

    12V MD-012-060VT Multi Dim LED Driver
    Max Continuous Load60 W
    Voltage12 VDC Output / 100~130 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor use)
    Multi-Dim series is compatible with Forward phase, Magnetic low voltage and Triac dimmers
    $89.75 Add to cart More Info

  • 75W 12VDC Class 2 LED Power Supply XLD75B-112V-FC

    Voltage12 VDC Output / 90~277 VAC Input
    Power Supply TypeRegulated Class 2
    IP RatingIP65 (Indoor or Outdoor use)
    Warranty3 Years
    $148.25 Add to cart More Info

  • 200W 12VDC Class 2 LED Power Supply XLD200B-412V-FC

    Voltage12 VDC Output / 90~277 VAC Input
    Power Supply TypeRegulated Class 2
    IP RatingIP65 (Indoor or Outdoor use)
    Warranty3 Years
    $235.00 Add to cart More Info

    • Product Accessories

  • New

    WAGO 221-412 Splicing Connector

    WAGO 221-412 splicing connector

    WAGO’s 221-412  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $0.75 Add to cart More Info

  • WAGO 221-413 Splicing Connector

    WAGO’s 221-413  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $0.95 Add to cart More Info

  • WAGO 221-415 Splicing Connector

    WAGO’s 221-415  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.25 Add to cart More Info
