Color changing Sign Backlight RGBW LED modules provide an easy install solution for channel lettering signs and backlight applications as they can easily fit in shapes or around objects where linear lighting cannot. Each module is sealed to IP65 standard for durability and suitable for indoor/outdoor use.
Color changing Sign (Backlight) RGBW LED modules are excellent heat disperse and water-resistant. Modules are made with durable sealed white plastic housing.
Each RGBW LED module feature additional Warm White (3000K) Chip that adds a wider color spectrum for better whites.
Color control options are available with LED World’s DMX controllers and Wi-Fi color controllers for color changing sign letters.
Moreover, the Modules can easily fit in shapes or around objects where linear lighting cannot.
Applications
| Ideal for outdoor and indoor sign lighting |
| Color Changing back lighting for signage letters or channel letter lighting |
| Use to replace Neon for letter lighting |
| UL recognized component sign component |
Features
| Available in 12 volts DC |
| High powered LEDs with low power consumption |
| Low voltage, energy-efficient, virtually no maintenance |
| Can be cut to size (by electricians) |
| Operating temperature: -20°C ~ 45°C |
| Long life span of LED lights, 30,000 hours+ |
| Water resistant IP65 case |
| Adhesive back & screw mountable. Peel & stick |
Product Description
Color changing Sign Backlight RGBW LED modules provide an easy install solution for channel lettering signs and backlight applications as they can easily fit in shapes or around objects where linear lighting cannot. Each module is sealed to IP65 standard for durability and suitable for indoor/outdoor use.
Color changing Sign (Backlight) RGBW LED modules are excellent heat disperse and water-resistant. Modules are made with durable sealed white plastic housing.
Each RGBW LED module feature additional Warm White (3000K) Chip that adds a wider color spectrum for better whites.
Color control options are available with LED World’s DMX controllers and Wi-Fi color controllers for color changing sign letters.
Moreover, the Modules can easily fit in shapes or around objects where linear lighting cannot.
Applications
| Ideal for outdoor and indoor sign lighting |
| Color Changing back lighting for signage letters or channel letter lighting |
| Use to replace Neon for letter lighting |
| UL recognized component sign component |
Features
| Available in 12 volts DC |
| High powered LEDs with low power consumption |
| Low voltage, energy-efficient, virtually no maintenance |
| Can be cut to size (by electricians) |
| Operating temperature: -20°C ~ 45°C |
| Long life span of LED lights, 30,000 hours+ |
| Water resistant IP65 case |
| Adhesive back & screw mountable. Peel & stick |
Technical Specifications
| Max voltage | 12 VDC |
| Wattage | 0.91 each Module |
| Set Length | 25.4ft (7.74M) / 50 Modules |
| Watt/set | 45.5W (50 Modules) |
| Dimensions | 80(L) x 25(W) x 8(H)mm (3.14″ x 0.98″ x 0.31″) Each Modules |
| Connector | 5 Pigtail Wire (at each end) |
| Housing | PVC |
| LEDs Type | Epistar SMD RGBW Chip |
| LED Angle | 120° |
| Lamp life | 30,000 hours estimated average |
| IP Rating | IP65 (not including connection) |
| Brightness | 36.4 LM Module (All On) |

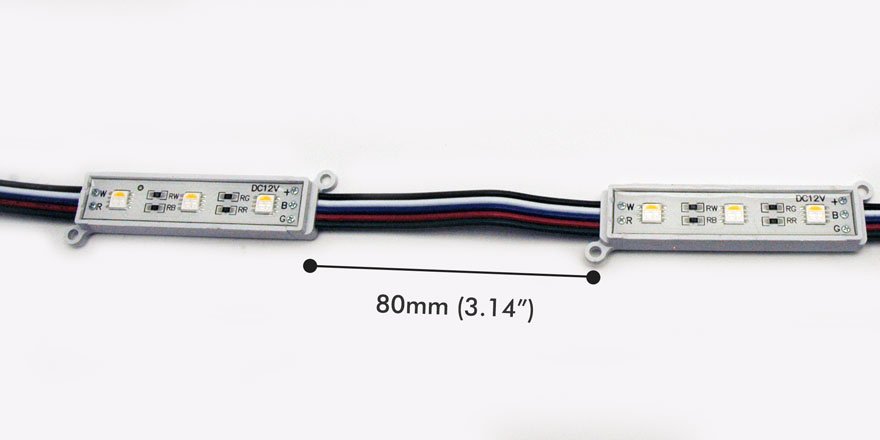

| Modules/Set | 50 per pack, 80mm (3.14”) wire spacing |
| Certification | cRUus |
| Max Run | 50 Modules (3.8A) by wire (18 AWG) |
Power Supplies
30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
200W 12VDC Class 2 LED Power Supply XLD200B-412V-FC
| Voltage | 12 VDC Output / 90~277 VAC Input |
| Power Supply Type | Regulated Class 2 |
| IP Rating | IP65 (Indoor or Outdoor use) |
| Warranty | 3 Years |
180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2
| Max Continuous Load | 180W (3 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2
| Max Continuous Load | 300W (5 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
75W 12VDC Class 2 LED Power Supply XLD75B-112V-FC
| Voltage | 12 VDC Output / 90~277 VAC Input |
| Power Supply Type | Regulated Class 2 |
| IP Rating | IP65 (Indoor or Outdoor use) |
| Warranty | 3 Years |
Value line Controllers
RGB-W Multi-Zone Remote Controller FUT089 for LS2
FUT089 Multi-Zone (8 zones) RGB-W LED remote controller with RF 2.4GHz. It covers distance upto 22.8m (75 feet) clear line of sight. Works with our LS2 Color Receiver.
RGBW LED Receiver LS2 featuring Mesh Network
LS2 is the 5 in 1 (RGB, RGBW, CCT, RGB+CCT and single color) color receiver can control RGB LED Flex Strips of either 12 or 24VDC. The LS2 controller features auto-transmitting and auto-synchronizing function with brightness, CCT, RGB, RGBW and RGB+CCT output mode.
Master Color Controllers
DMX Touch Panel RGB/RGBW LED Master Controller HUEDA LW-2814DMX
HUEDA™ multi-zone DMX Touch Panel Master Color controller features easy to touch and control colors, brightness and color changing speed effects.
DMX Color Master Controller HUEDA™ Hub H-2818WIN
The H-2818WIN HUEDA™ Hub (master) is a Wi-Fi/RF color controller that allows you to control color changing of RGB and RGBW LED Lighting through DMX standard or wireless HUEDA RF color receivers.
Color DMX Decoders
5 Channel DMX512 8-16 bit Color Decoder Pro Series H-DMX2108A-5M-3
Multiple Zone Control DMX decoder to control multiple RGB-W strips as one. Converts analog signal to universal standard DMX512/1990. Uses 5 channels with 256 shades of brightness.
5 Channel LED DMX Decoder & Zone Controller LT-995
DMX Decoder for use with RGB low voltage LED Strips, bars and other low voltage LED RGB lighting. Set DMX decoder to desire channel (address) to control one or many zones (to control multiple RGB strips). Converts analog signal to universal standard DMX512/1990. Uses 5 channels 256 shades of brightness.
32CH LT-932-OLED DMX/RDM LED Color Decoder
DMX Decoder for use with Single color, CCT, RGB and RGBW low voltage LED Strips, bars and other LED lighting fixtures. Set the DMX decoder to desired channel (address) to control one or more zones (to control multiple RGB/W strips as one). Uses 32 channels with 65536 levels grey scale output per channel.
DMX512 Signal Amplifier/Repeater – SR-2100AMP
SR-2100AMP is a DMX512 signal amplifier complies with standard protocol DMX512 (1990). With DMX signal input and DMX signal output, the signal amplifier works with DMX decoder to expand DMX signals in parallel up to 100m (328ft) range.
Outdoor DMX 512 Decoder HUEDA H-2102B(W)
H-2102B(W) is the water resistant standard DMX512 compliant control interface, allows you to set DMX address via digital numeric display. Compatible with DMX Master HUEDA™.
Product Accessories
RGBW 2464 Wire – 16.4ft (5m) length
Low voltage 20 Gauge / Meter cord. Comes in 16.40 feet length. RGBW Power cord with pigtail wires on both ends
Product Description
Color changing Sign Backlight RGBW LED modules provide an easy install solution for channel lettering signs and backlight applications as they can easily fit in shapes or around objects where linear lighting cannot. Each module is sealed to IP65 standard for durability and suitable for indoor/outdoor use.
Color changing Sign (Backlight) RGBW LED modules are excellent heat disperse and water-resistant. Modules are made with durable sealed white plastic housing.
Each RGBW LED module feature additional Warm White (3000K) Chip that adds a wider color spectrum for better whites.
Color control options are available with LED World’s DMX controllers and Wi-Fi color controllers for color changing sign letters.
Moreover, the Modules can easily fit in shapes or around objects where linear lighting cannot.
Applications
| Ideal for outdoor and indoor sign lighting |
| Color Changing back lighting for signage letters or channel letter lighting |
| Use to replace Neon for letter lighting |
| UL recognized component sign component |
Features
| Available in 12 volts DC |
| High powered LEDs with low power consumption |
| Low voltage, energy-efficient, virtually no maintenance |
| Can be cut to size (by electricians) |
| Operating temperature: -20°C ~ 45°C |
| Long life span of LED lights, 30,000 hours+ |
| Water resistant IP65 case |
| Adhesive back & screw mountable. Peel & stick |
Technical Specifications
| Max voltage | 12 VDC |
| Wattage | 0.91 each Module |
| Set Length | 25.4ft (7.74M) / 50 Modules |
| Watt/set | 45.5W (50 Modules) |
| Dimensions | 80(L) x 25(W) x 8(H)mm (3.14″ x 0.98″ x 0.31″) Each Modules |
| Connector | 5 Pigtail Wire (at each end) |
| Housing | PVC |
| LEDs Type | Epistar SMD RGBW Chip |
| LED Angle | 120° |
| Lamp life | 30,000 hours estimated average |
| IP Rating | IP65 (not including connection) |
| Brightness | 36.4 LM Module (All On) |
| Modules/Set | 50 per pack, 80mm (3.14”) wire spacing |
| Certification | cRUus |
| Max Run | 50 Modules (3.8A) by wire (18 AWG) |
Power Supplies
30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
200W 12VDC Class 2 LED Power Supply XLD200B-412V-FC
| Voltage | 12 VDC Output / 90~277 VAC Input |
| Power Supply Type | Regulated Class 2 |
| IP Rating | IP65 (Indoor or Outdoor use) |
| Warranty | 3 Years |
180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2
| Max Continuous Load | 180W (3 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2
| Max Continuous Load | 300W (5 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
75W 12VDC Class 2 LED Power Supply XLD75B-112V-FC
| Voltage | 12 VDC Output / 90~277 VAC Input |
| Power Supply Type | Regulated Class 2 |
| IP Rating | IP65 (Indoor or Outdoor use) |
| Warranty | 3 Years |
Value line Controllers
RGB-W Multi-Zone Remote Controller FUT089 for LS2
FUT089 Multi-Zone (8 zones) RGB-W LED remote controller with RF 2.4GHz. It covers distance upto 22.8m (75 feet) clear line of sight. Works with our LS2 Color Receiver.
RGBW LED Receiver LS2 featuring Mesh Network
LS2 is the 5 in 1 (RGB, RGBW, CCT, RGB+CCT and single color) color receiver can control RGB LED Flex Strips of either 12 or 24VDC. The LS2 controller features auto-transmitting and auto-synchronizing function with brightness, CCT, RGB, RGBW and RGB+CCT output mode.
Master Color Controllers
DMX Touch Panel RGB/RGBW LED Master Controller HUEDA LW-2814DMX
HUEDA™ multi-zone DMX Touch Panel Master Color controller features easy to touch and control colors, brightness and color changing speed effects.
DMX Color Master Controller HUEDA™ Hub H-2818WIN
The H-2818WIN HUEDA™ Hub (master) is a Wi-Fi/RF color controller that allows you to control color changing of RGB and RGBW LED Lighting through DMX standard or wireless HUEDA RF color receivers.
Color DMX Decoders
5 Channel DMX512 8-16 bit Color Decoder Pro Series H-DMX2108A-5M-3
Multiple Zone Control DMX decoder to control multiple RGB-W strips as one. Converts analog signal to universal standard DMX512/1990. Uses 5 channels with 256 shades of brightness.
5 Channel LED DMX Decoder & Zone Controller LT-995
DMX Decoder for use with RGB low voltage LED Strips, bars and other low voltage LED RGB lighting. Set DMX decoder to desire channel (address) to control one or many zones (to control multiple RGB strips). Converts analog signal to universal standard DMX512/1990. Uses 5 channels 256 shades of brightness.
32CH LT-932-OLED DMX/RDM LED Color Decoder
DMX Decoder for use with Single color, CCT, RGB and RGBW low voltage LED Strips, bars and other LED lighting fixtures. Set the DMX decoder to desired channel (address) to control one or more zones (to control multiple RGB/W strips as one). Uses 32 channels with 65536 levels grey scale output per channel.
DMX512 Signal Amplifier/Repeater – SR-2100AMP
SR-2100AMP is a DMX512 signal amplifier complies with standard protocol DMX512 (1990). With DMX signal input and DMX signal output, the signal amplifier works with DMX decoder to expand DMX signals in parallel up to 100m (328ft) range.
Outdoor DMX 512 Decoder HUEDA H-2102B(W)
H-2102B(W) is the water resistant standard DMX512 compliant control interface, allows you to set DMX address via digital numeric display. Compatible with DMX Master HUEDA™.
Product Accessories
RGBW 2464 Wire – 16.4ft (5m) length
Low voltage 20 Gauge / Meter cord. Comes in 16.40 feet length. RGBW Power cord with pigtail wires on both ends
