New COB (Chips On Board) LED Strips incorporates a new LED technology improving heat dissipation, which will further reduce energy consumption with up to 20% less energy consumed compared to current LEDs. Ideal for a spot free even lighting with a wide beam angle. The low voltage (12VDC) LED Strip Light creates a dot free light without a channel profile cover. However, a channel cover is always recommended as a protection from accidental damage. Easy smooth dimming with our optional Class 2 dimmable LED drivers.
No Spot COB Flex Strip lighting is cut-able at marked intervals (25mm/0.98″) and comes in 5 meter (16.4 feet) roll. It has 3M tape backing for easy installation. It is suitable for dry locations use. Mountable onto most flat, clean dry surfaces (ambient temperature) free of burrows, The LED Strips come with lead wires to be powered with our Class 2 power supply.

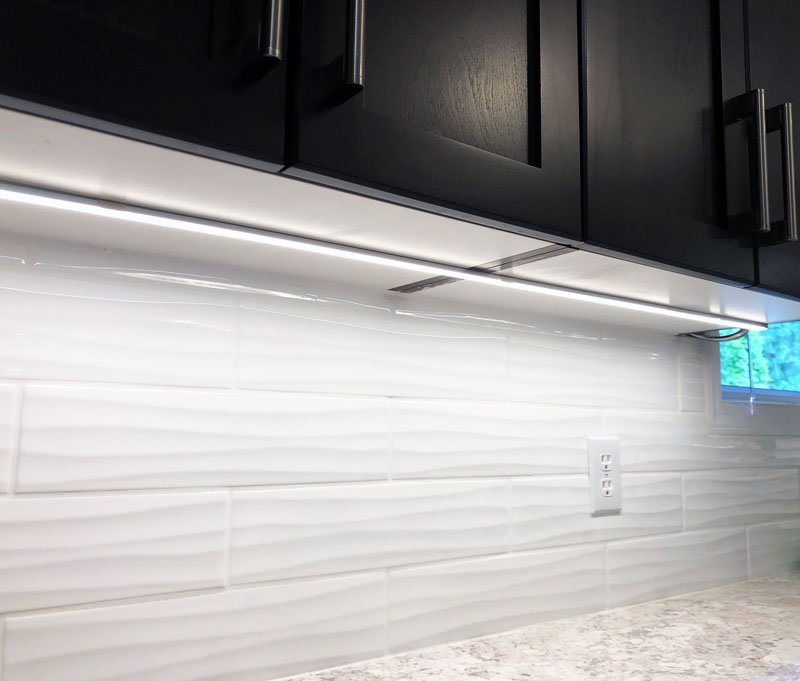

Ideal for use in many applications: Under cabinet lighting, architectural lighting, concealed lighting and many other applications. The small size, low voltage and higher light distribution angle (180°) make No Spot COB Flex Strip the ideal light.
Connecting COB Strip to Clamp connector video: Click Here
Note: This product requires an optional Class 2 Power Supply (not included).
Note: Accessories are not included with this product. See Accessories tab.
COB LED Strip Light Features
| Phosphor layer Lens on top of LEDs to remove spotting effect |
| COB LEDs for better heat dissipation/td> |
| Dimmable via LED World’s optional dimming solutions |
| Double sided 3M tape |
| Low power consumption and little heat produced |
| Flexible LED light strips |
| Long life of high output LEDs |
| Solid state lighting |
| CRI 90> |
Product Description
New COB (Chips On Board) LED Strips incorporates a new LED technology improving heat dissipation, which will further reduce energy consumption with up to 20% less energy consumed compared to current LEDs. Ideal for a spot free even lighting with a wide beam angle. The low voltage (12VDC) LED Strip Light creates a dot free light without a channel profile cover. However, a channel cover is always recommended as a protection from accidental damage. Easy smooth dimming with our optional Class 2 dimmable LED drivers.
No Spot COB Flex Strip lighting is cut-able at marked intervals (25mm/0.98″) and comes in 5 meter (16.4 feet) roll. It has 3M tape backing for easy installation. It is suitable for dry locations use. Mountable onto most flat, clean dry surfaces (ambient temperature) free of burrows, The LED Strips come with lead wires to be powered with our Class 2 power supply.
Ideal for use in many applications: Under cabinet lighting, architectural lighting, concealed lighting and many other applications. The small size, low voltage and higher light distribution angle (180°) make No Spot COB Flex Strip the ideal light.
Connecting COB Strip to Clamp connector video: Click Here
Note: This product requires an optional Class 2 Power Supply (not included).
Note: Accessories are not included with this product. See Accessories tab.
COB LED Strip Light Features
| Phosphor layer Lens on top of LEDs to remove spotting effect |
| COB LEDs for better heat dissipation/td> |
| Dimmable via LED World’s optional dimming solutions |
| Double sided 3M tape |
| Low power consumption and little heat produced |
| Flexible LED light strips |
| Long life of high output LEDs |
| Solid state lighting |
| CRI 90> |
Technical Specifications
| Watt foot | 3 W/ft |
| Max Voltage | 12 VDC (regulated) |
| AMPs/Roll | 4.1 Amps |
| Brightness | 270~300 Lumens / ft |
| Roll Size | 5 Meters (16.4 feet) |
| Light Source | Flip Chip COB LED |
| Dimensions | 5000(L) x 10(W) x 1.8(H)mm (16.4′ x 0.39″ x 0.07″) |
| Max Length | 5 Meters (16.4 feet) |
| LED Angle | 180° |
| Lamp Life | >16,000 hours estimated average* |
| IP Rating | IP20 type A |
| Mount | Smooth Clean Surface – burrows free (ambient temperature) |
| Operating Temperature | -25°C ~ +40°C (-13°F ~ +104°F) |
Dimmable LED Drivers
30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2
| Max Continuous Load | 180W (3 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2
| Max Continuous Load | 300W (5 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
Regulated LED Drivers
Aluminium Channel
Aluminum Channel Standard AC-1707
| Available Lengths | 1 meter(3.28ft), 2 meter(6.56ft) |
| Size | 17.5mm (0.68″) x 7mm (0.27″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Wide Standard Aluminum Channel AC-2310
| Available Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Size | 23.5mm (0.92″) x 11mm (0.43″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Corner Round Aluminum Channel AC-LA01
| Available Lengths | 1 meter (3.28ft), 2 meter(6.56ft) |
| Size | W 16mm (0.62″) x H 16mm (0.62″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Corner Cove Aluminum LED Profile AC-3030G
| Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Aluminum Recessed Channel AC-AR1-1M
| Length | 1 meter (3.28ft) |
| Size | 17.1mm x 8.6mm (0.67″ x 0.33″) |
| Included Items | Opaque lens, End cap pair |
Drywall Aluminum LED Channel AC-501520-2M
| Lengths | 2 meter (6.56ft) |
| Included Items | Opaque lens |
Round Aluminum LED Channel AC-R008
| Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Size | ø 20.8mm |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Product Accessories
2 Pin Strip to Power Clear Connectors – BCI10XB-2W
BCI10XB-2W clear connector makes it easy to connect single color 10mm wide LED strip to power in a narrow space. Connector length is 6.29″ (160mm). Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).
2 Pin Strip to Strip Clear Connectors – BCI10BB-2
BCI10BB-2 Clear connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).
2 Pin Strip to Power Clamp Connector – CL10XB-2G
CL10XB-2G connector makes it easy to connect single color 10mm wide LED strip to wire. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
2 Pin Strip to Strip Clamp Connector – CL10BB-2G
CL10BB-2G connector makes it easy to join two single color 10mm wide LED strips together. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
Mini 2 Pin Strip to Strip Clamp Connector – CL10BB-2
Mini CL10BB-2 connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
Single Color Strip T Connector – S10-T2A
S10-T2A 10mm T shape connector with cut marks for easy custom angle connection. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 3.5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
WAGO 221-412 Splicing Connector
WAGO’s 221-412 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
WAGO 221-413 Splicing Connector
WAGO’s 221-413 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
WAGO 221-415 Splicing Connector
WAGO’s 221-415 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
H05-415 Wago Cable Connector
Low voltage cable connector with 4 terminals lever clamps to connect wire to DC male end 2.1 x 5.5mm
H05 Power Connector
Low voltage 20″ DC connector with one 2.1 x 5.5mm DC Plug Female at one end and two pigtail wires, red (+) and black (-) at the other end.
LED Low Voltage Mini Dimmer DIM-2430A
| Max Voltage | 12V~24VDC (Class 2 regulated) |
| Output | 1 channel 30-Amps (peak) |
| Dimension | L 86 x W 60 x H 35 mm (3.46″ L x 2.36″ W x 1.37″ H) |
| Brightness | 0% to 100% |
Product Description
New COB (Chips On Board) LED Strips incorporates a new LED technology improving heat dissipation, which will further reduce energy consumption with up to 20% less energy consumed compared to current LEDs. Ideal for a spot free even lighting with a wide beam angle. The low voltage (12VDC) LED Strip Light creates a dot free light without a channel profile cover. However, a channel cover is always recommended as a protection from accidental damage. Easy smooth dimming with our optional Class 2 dimmable LED drivers.
No Spot COB Flex Strip lighting is cut-able at marked intervals (25mm/0.98″) and comes in 5 meter (16.4 feet) roll. It has 3M tape backing for easy installation. It is suitable for dry locations use. Mountable onto most flat, clean dry surfaces (ambient temperature) free of burrows, The LED Strips come with lead wires to be powered with our Class 2 power supply.
Ideal for use in many applications: Under cabinet lighting, architectural lighting, concealed lighting and many other applications. The small size, low voltage and higher light distribution angle (180°) make No Spot COB Flex Strip the ideal light.
Connecting COB Strip to Clamp connector video: Click Here
Note: This product requires an optional Class 2 Power Supply (not included).
Note: Accessories are not included with this product. See Accessories tab.
COB LED Strip Light Features
| Phosphor layer Lens on top of LEDs to remove spotting effect |
| COB LEDs for better heat dissipation/td> |
| Dimmable via LED World’s optional dimming solutions |
| Double sided 3M tape |
| Low power consumption and little heat produced |
| Flexible LED light strips |
| Long life of high output LEDs |
| Solid state lighting |
| CRI 90> |
Technical Specifications
| Watt foot | 3 W/ft |
| Max Voltage | 12 VDC (regulated) |
| AMPs/Roll | 4.1 Amps |
| Brightness | 270~300 Lumens / ft |
| Roll Size | 5 Meters (16.4 feet) |
| Light Source | Flip Chip COB LED |
| Dimensions | 5000(L) x 10(W) x 1.8(H)mm (16.4′ x 0.39″ x 0.07″) |
| Max Length | 5 Meters (16.4 feet) |
| LED Angle | 180° |
| Lamp Life | >16,000 hours estimated average* |
| IP Rating | IP20 type A |
| Mount | Smooth Clean Surface – burrows free (ambient temperature) |
| Operating Temperature | -25°C ~ +40°C (-13°F ~ +104°F) |
Dimmable LED Drivers
30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2
| Max Continuous Load | 30 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2
| Max Continuous Load | 60 W |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2
| Max Continuous Load | 180W (3 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2
| Max Continuous Load | 300W (5 Tap x 60W) |
| Voltage | 12 VDC Output / 100~277 VAC Input |
| Power Supply Type | Regulated Class 2 (Indoor/Outdoor use) |
Regulated LED Drivers
Aluminium Channel
Aluminum Channel Standard AC-1707
| Available Lengths | 1 meter(3.28ft), 2 meter(6.56ft) |
| Size | 17.5mm (0.68″) x 7mm (0.27″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Wide Standard Aluminum Channel AC-2310
| Available Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Size | 23.5mm (0.92″) x 11mm (0.43″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Corner Round Aluminum Channel AC-LA01
| Available Lengths | 1 meter (3.28ft), 2 meter(6.56ft) |
| Size | W 16mm (0.62″) x H 16mm (0.62″) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Corner Cove Aluminum LED Profile AC-3030G
| Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Aluminum Recessed Channel AC-AR1-1M
| Length | 1 meter (3.28ft) |
| Size | 17.1mm x 8.6mm (0.67″ x 0.33″) |
| Included Items | Opaque lens, End cap pair |
Drywall Aluminum LED Channel AC-501520-2M
| Lengths | 2 meter (6.56ft) |
| Included Items | Opaque lens |
Round Aluminum LED Channel AC-R008
| Lengths | 1 meter (3.28ft), 2 meter (6.56ft) |
| Size | ø 20.8mm |
| Included Items | Opaque lens, Mounting clip pair, End cap pair |
Product Accessories
2 Pin Strip to Power Clear Connectors – BCI10XB-2W
BCI10XB-2W clear connector makes it easy to connect single color 10mm wide LED strip to power in a narrow space. Connector length is 6.29″ (160mm). Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).
2 Pin Strip to Strip Clear Connectors – BCI10BB-2
BCI10BB-2 Clear connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).
2 Pin Strip to Power Clamp Connector – CL10XB-2G
CL10XB-2G connector makes it easy to connect single color 10mm wide LED strip to wire. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
2 Pin Strip to Strip Clamp Connector – CL10BB-2G
CL10BB-2G connector makes it easy to join two single color 10mm wide LED strips together. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
Mini 2 Pin Strip to Strip Clamp Connector – CL10BB-2
Mini CL10BB-2 connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
Single Color Strip T Connector – S10-T2A
S10-T2A 10mm T shape connector with cut marks for easy custom angle connection. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 3.5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.
WAGO 221-412 Splicing Connector
WAGO’s 221-412 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
WAGO 221-413 Splicing Connector
WAGO’s 221-413 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
WAGO 221-415 Splicing Connector
WAGO’s 221-415 COMPACT Splicing Connector is 40 % smaller than the 222 Series. Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).
H05-415 Wago Cable Connector
Low voltage cable connector with 4 terminals lever clamps to connect wire to DC male end 2.1 x 5.5mm
H05 Power Connector
Low voltage 20″ DC connector with one 2.1 x 5.5mm DC Plug Female at one end and two pigtail wires, red (+) and black (-) at the other end.
LED Low Voltage Mini Dimmer DIM-2430A
| Max Voltage | 12V~24VDC (Class 2 regulated) |
| Output | 1 channel 30-Amps (peak) |
| Dimension | L 86 x W 60 x H 35 mm (3.46″ L x 2.36″ W x 1.37″ H) |
| Brightness | 0% to 100% |
