    • RGB Side Emitting LED Strip FA-SV4713-108-24-RGB

    SKU: FA-SV4713-108-24-RGB
    Category:
    Tags: , , , , , , ,
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 2
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 3
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 4
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 5
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 6
    RGB Side Emitting LED Strip FA-SV4713-108-24-RGB - Image 7
    Length16.4ft (5 Meter)
    Voltage24V DC
    LED Type4713 Side Emitting LED
    Product Specifications PDF
    Product Instructions PDF

    $274.04

    Product Description

    24 Volt RGB Side Emitting LED Strip for your lighting needs. This high-quality FA-SV4713-108-24-RGB strip is equipped with ultra-bright side emitting tri-chip 4713 SMD LEDs, making it perfect for a range of applications. Measuring 16.4 feet (5 meters) in length, this flexible strip is incredibly thin and designed to emit light vertically while being bendable on the horizontal plane.

    With its standard RGB 5050 tri-chip configuration, this Side Emitting RGB Flex Strip offers exceptional versatility. It is particularly useful for outlining channel letters or creating unique shapes that require perpendicular emitting light. Additionally, this Type A (IP20) Flex Strip is suitable for dry locations, ensuring its compatibility for various environments.

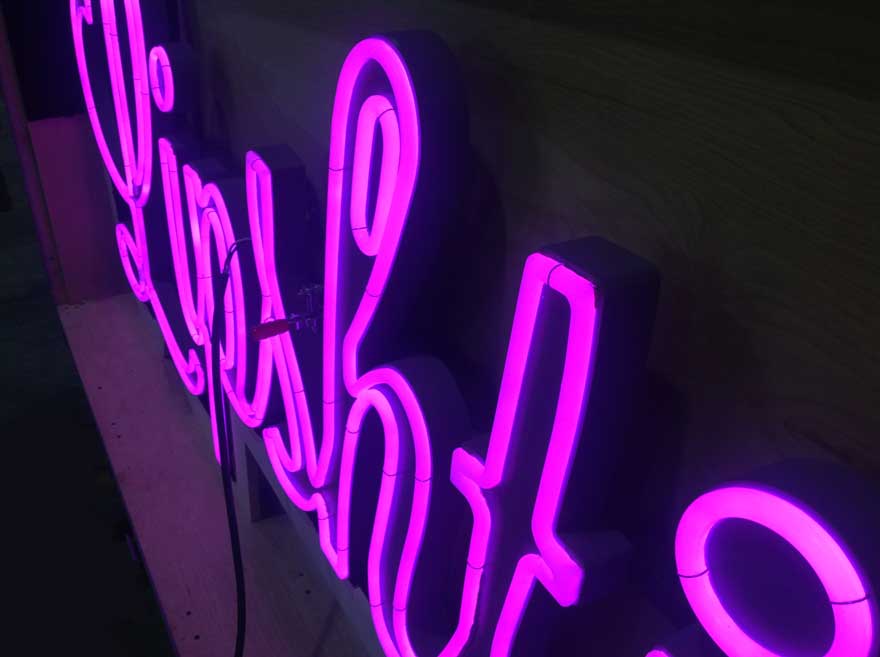

    Ideal for lighting designers, this strip is perfect for sign letter lighting, bar lighting, stage lighting, perimeter lighting, and more. To achieve dynamic color control, you can pair it with any of our RGB Controllers. Whether you prefer DMX or wireless RF controllers, we have the right options for you. For further information on compatible color controllers, please refer to our color controllers tab.

    Installation is a breeze with the 3M tape backing included. You can easily customize the strip by cutting it to size at marked intervals. Detailed instructions and a helpful PDF are provided for your convenience.

    Choose our RGB Side Emitting LED Strip to elevate your lighting experience. Its powerful features, user-friendly installation, and compatibility with various controllers make it an excellent choice for your lighting projects.

    Note: This product requires an optional Class 2 Power Supply and Color Controller (not included).

    Note: Accessories are not included with this product. See Accessories tab.

    RGB Side Emitting LED Strip Features

    Tri-chip 4713 SMD LEDs with three colors in one chip
    24 volts DC, 4.0 watts per foot
    5 Meter roll (16.4ft)
    Color changing RGB Triple Bright Side Emitting SMD LEDs. Little or no heat
    Can be cut to size at marked intervals and rejoined by experienced personnel in low voltage lighting
    Operating temperature: -25°C ~ 40°C (-13°F ~ 104°F)
    Long life span of LED lights of up to 25,000 hours +

    Technical Specifications

    Watt foot4.0 W/ft
    Max Voltage24 VDC (Regulated/Class 2)
    Roll Size5 Meters (16.4 feet)
    Amps/Roll2.69 Amps
    Light Source108 pcs/meter 4713 Side Emitting SMD RGB (3in1)
    Dimensions5000(L) x 12 (W) x 2(H)mm (16.4′ x 0.47″ x 0.078″)
    LEDs Type4713 SMD Side Emitting LED
    LED Angle180°
    Mounting3M Adhesive Tape, Type A
    Lamp Life>30,000 hours
    Operating Temperature-25°C ~ +40°C (-13°F ~ 104°F)
