LED World Inc
1-800-387-4081

    • RGBW LED Strip FA60M50-5M-24V-RGBW

    SKU: FA60M50-5M-24V-RGBW
    Category:
    Tags: , , , , ,
    RGBW LED Strip FA60M50-5M-24V-RGBW-2
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 2
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 3
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 4
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 5
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 6
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 7
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 8
    RGBW LED Strip FA60M50-5M-24V-RGBW - Image 9
    Length16.4ft (5m)
    Volts24 VDC
    LED Type5050 SMD LED
    Product Specifications PDF
    Product Instructions PDF

    $182.40

    Product Description

    Introducing our high-brightness color-changing LED Flex Strip, now available with a new 4-in-1 5050 SMD LED Chip. While traditional 5050 SMD LED strips offer three colors (red, green, and blue), our RGBW LED strip features those same colors plus an additional warm white (2700K +/- 100K) LED chip. This combination results in a wider color spectrum and super bright lighting!

    Each roll of our RGBW LED strip measures 16.4 feet (5 meters) in length and features an ultra-thin, flexible design with a 3M adhesive backing. To maximize functionality, pair this LED strip with our optional  DMX Color Controller.

    Designed with lighting designers and professionals in mind, our RGBW LED strip is ideal for a wide range of applications, including architectural lighting, sign letter lighting, color cove lighting, bar lighting, stage lighting, and more.

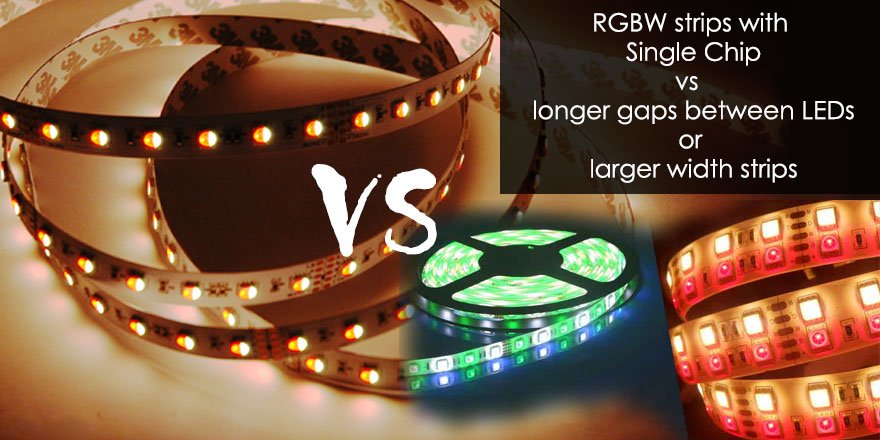

    Please note that the RGBW 5050 Chip contains the standard three colors in one chip plus a separate 5050 SMD for white, which can create white spots and diminish the color mixing effect. To extend the lifespan of the LEDs, it is recommended to install this Type A LED strip in our optional Aluminum Channel. The FA60M50-5M-24V-RGBW also comes with a five-wire pigtail (50cm) 20″ long for easy connection to our optional color controllers. This LED strip can be cut to size at marked intervals, every 6 LED (24VDC). Be sure to read the instructions carefully before installation.

    Experience the vibrant colors and bright lighting of our RGBW LED strip today!

    Note: This product requires an optional Class 2 Power Supply and Color Controller (not included)

    Note: Accessories are not included with this product. See Accessories tab above

    Features

    Separate Warm White LED for a wider color spectrum of White
    24 volts DC, 6 watts per foot
    Color changing RGBW Bright 5050 SMD LEDs with 4 Chips in 1 LED.
    Can be cut to size at marked intervals and rejoined by experienced personnel
    Operating temperature: -25°C ~ 40°C (-13°F ~ 104°F)
    Long life span of LED lights of up to 25,000 hours +

    Technical Specifications

    Watt foot6 Watts/ft
    Max Voltage24 VDC (Regulated/Class 2)
    Amps/Roll4 Amps (5m Roll)
    Max Current 250mA/Foot (30.5cm)
    Roll Size5m (16.4 ft)
    Light Source60 pcs/meter (39.37″) 5050 RGBW SMD LED (4 in 1)
    Dimensions12(W) x 2.5(H)mm (0.47″ x 3/32″)
    LEDs Type5050 SMD LED
    LED Angle120°
    MountSmooth Clean Surface – burrows free (ambient temperature)
    Pitch Distance of LEDs16.67 mm
    Lamp Life>25,000 hours (70% Lumen Maintenance)
    Operating Temperature-25°C ~ +40°C  (-13°F ~ 104°F)

    Power Supplies

  • 96W 24VDC Class 2 LED Power Supply with Plug YHY-24004000

    Max Continuous Load96 W (77 W continuous)
    Voltage24 VDC Output / 120 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor use)
    Comes with barrel connector for easy plug in and connect
    $84.81
    Add to cart More info

  • 100W 24VDC Class 2 LED Driver With DMX Decoder – LW-24100-5C-ADJ

    Max Continuous Load100 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current4.16A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $245.04
    Add to cart More info
  • New

    192W 24VDC Class 2 Non Dimmable LED Driver MD-024-192VWJ2V2

    Max Continuous Load192W (2 Tap x 96W)
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current2 x 4A
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    $249.60
    Add to cart More info

  • 96W 24VDC Class 2 Non Dimmable LED Driver MD-024-096VWJV2

    Max Continuous Load96 W
    Voltage24 VDC Output / 100~277 VAC Input
    Power Supply TypeNon Dimmable Class 2 (Indoor/Outdoor use)
    $153.60
    Add to cart More info
  • New

    150W 24VDC Class 2 LED Driver With DMX Decoder – LW-24150-4C-ADJ

    Max Continuous Load150 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current6.24A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $377.85
    Add to cart More info
  • New

    200W 24VDC Class 2 LED Driver/DMX Decoder All in One- LW-24200-4C-ADJ

    Max Continuous Load200 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current4x 2.08A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $414.40
    Add to cart More info

    • Value line Controllers

  • RGB-W Multi-Zone Remote Controller FUT089 for LS2

    FUT089 Multi-Zone (8 zones) RGB-W LED remote controller with RF 2.4GHz. It covers distance upto 22.8m (75 feet) clear line of sight. Works with our LS2 Color Receiver.

    $47.20
    Add to cart More info

  • RGBW LED Receiver LS2 featuring Mesh Network

    LS2 is the 5 in 1 (RGB, RGBW, CCT, RGB+CCT and single color)  color receiver can control RGB LED Flex Strips of either 12 or 24VDC.  The LS2 controller features auto-transmitting and auto-synchronizing function with brightness, CCT, RGB, RGBW and RGB+CCT output mode.

    $47.60 Out of Stock More info

    • Aluminum Channel

  • Aluminum Channel Standard AC-1707

    Available Lengths1m(3.28ft), 2m(6.56ft), 2.44m(8ft)
    Size17.5mm (0.68″) x 7mm (0.27″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Lens meets UL V-0 standard.
    Price range: $11.96 through $31.16 Select options
    This product has multiple variants. The options may be chosen on the product page More info

  • Wide Standard Aluminum Channel AC-2310

    Standard Wide Aluminum Channel
    Available Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Size23.5mm (0.92″) x 11mm (0.43″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Price range: $17.05 through $34.06 Select options
    This product has multiple variants. The options may be chosen on the product page More info

  • Corner Round Aluminum Channel AC-LA01

    corner round aluminum channel
    Available Lengths1 meter (3.28ft), 2 meter(6.56ft)
    SizeW 16mm (0.62″) x H 16mm (0.62″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Price range: $23.20 through $46.40 Out of Stock More info

  • Aluminum Recessed Channel AC-AR1-XM

    Recessed Aluminum Channel
    Length1m(3.28ft), 2m(6.56 feet), 2.44m(8ft)
    Size17.1mm x 8.6mm (0.67″ x 0.33″)
    Included ItemsOpaque lens, End cap pair
    Price range: $16.66 through $40.60 Select options
    This product has multiple variants. The options may be chosen on the product page More info

  • Drywall Aluminum LED Channel AC-501520

    Drywall aluminum channel
    Lengths2m(6.56ft), 2.44m(8ft)
    Included ItemsOpaque lens
    Note: Purchase requires minimum 5 qty
    Price range: $45.60 through $63.20 Select options
    This product has multiple variants. The options may be chosen on the product page More info

    • Master Color Controllers

  • DMX Touch Panel RGB/RGBW LED Master Controller HUEDA LW-2812WI

    HUEDA™ multi-zone DMX Touch Panel Master Color controller features easy to touch and control colors, brightness and color changing speed effects.

    $187.04
    Add to cart More info

    • Color DMX Decoders

  • New

    200W 24VDC Class 2 LED Driver/DMX Decoder All in One- LW-24200-4C-ADJ

    Max Continuous Load200 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current4x 2.08A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $414.40
    Add to cart More info
  • New

    150W 24VDC Class 2 LED Driver With DMX Decoder – LW-24150-4C-ADJ

    Max Continuous Load150 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current6.24A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $377.85
    Add to cart More info

  • 100W 24VDC Class 2 LED Driver With DMX Decoder – LW-24100-5C-ADJ

    Max Continuous Load100 W
    Voltage24 VDC Output / 100~277 VAC Input
    Rated Current4.16A
    Power Supply TypeDMX512 Class 2 (Indoor/Outdoor use)
    Built in DMX512 decoder
    $245.04
    Add to cart More info

  • 5 Channel DMX Decoder & Zone Controller for RGBW LED Lights

    DMX Decoder for use with RGB low voltage LED Strips, bars and other low voltage LED RGB lighting. Set DMX decoder to desire channel (address) to control one or many zones (to control multiple RGB strips). Converts analog signal to universal standard DMX512/1990. Uses 5 channels 256 shades of brightness.

    $230.54 Out of Stock More info

  • 32 Channel DMX/RDM LED Decoder: Ultimate Control for Professional Lighting

    DMX Decoder for use with Single color, CCT, RGB and RGBW low voltage LED Strips, bars and other LED lighting fixtures. Set the DMX decoder to desired channel (address) to control one or more zones (to control multiple RGB/W strips as one). Uses 32 channels with 65536 levels grey scale output per channel.

    $709.02
    Add to cart More info

  • 5 Channel DMX512 8-16 bit Color Decoder Pro Series H-DMX2108A-5M-3

    Multiple Zone Control DMX decoder to control multiple RGB-W strips as one. Converts analog signal to universal standard DMX512/1990. Uses 5 channels with 256 shades of brightness.

    $187.04 Out of Stock More info

  • DMX512 Signal Amplifier/Repeater – SR-2100AMP

    SR-2100AMP is a DMX512 signal amplifier complies with standard protocol DMX512 (1990). With DMX signal input and DMX signal output, the signal amplifier works with DMX decoder to expand DMX signals in parallel up to 100m (328ft) range.

    $64.51
    Add to cart More info

    • Product Accessories

  • New

    5 Pin RGBW Strip to Power Clamp Connector – CL12XB-5

    CL12XB-5 connector makes it easy to connect 12mm wide RGBW LED strip to wire. Use only with LED World’s 12mm wide Type A RGBW Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $13.76
    Add to cart More info
  • New

    5 Pin RGBW Strip to RGBW Strip Clamp Connector – CL12BB-5

    CL12BB-5 connector makes it easy to join two 12mm wide RGBW LED strips together. This transparent connector makes RGBW strip lighting seamless. Use only with LED World’s 12mm wide Type A RGBW Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $13.76
    Add to cart More info

  • RGBW Strip T Connector – S12-T5A

    S12-T5A 12mm T shape connector with cut marks for easy custom angle connection. Use only with LED World’s 12mm wide Type A RGBW Flex Strip (Not silicone coated or covered). Max 4 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $5.06
    Add to cart More info

  • L Connector for RGBW Strip RGBWL12MM

    RGBWL12MM RGBW Strip 12mm L shape corner Connector. Use only with LED World’s 12mm wide Type A RGBW Flex Strip (Not silicone coated or covered). Low voltage use only, max 4 Amps.

    $1.81
    Add to cart More info

  • RGBW 2464 Wire – 16.4ft (5m) length

    Low voltage 20 Gauge / Meter cord. Comes in 16.40 feet length. RGBW Power cord with pigtail wires on both ends

    $18.11
    Add to cart More info
